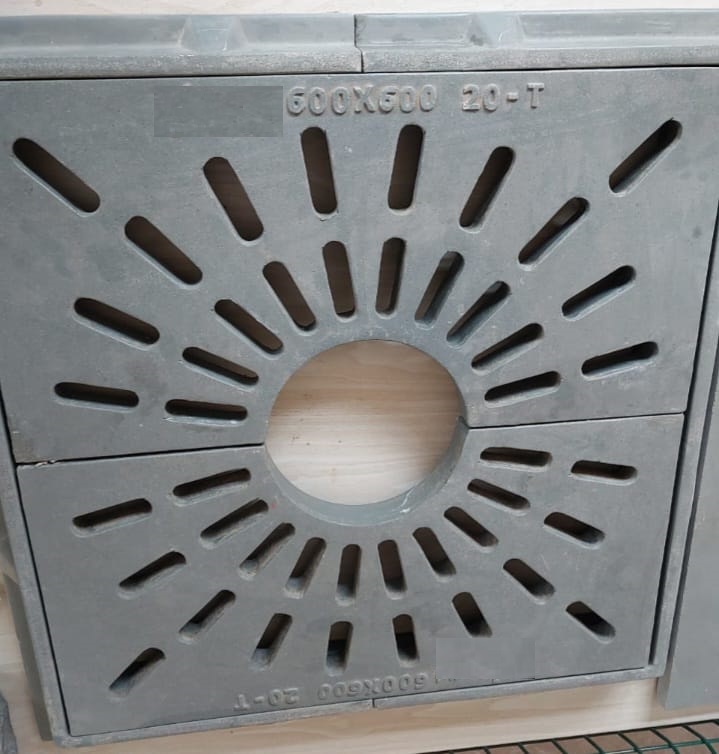

FRP Tree Grating Details

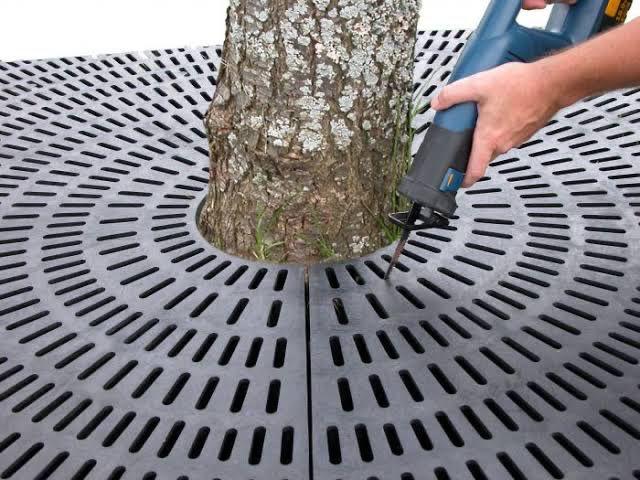

FRP Tree Gratings are recommended to save trees from RCC Structure.
This System does not disturb the continuity of greenry
Generally tree roots required moisturised water. It helps to allow watering in the roots
It is applicable side box & pedestrain areas, parks & plaza, green routes & roofs, top gardens, hospitals & healthcare facilities, schools, campus & educational institutions

Book Now

Item	Load Capacity (M.Tons)	Clear Opening (O) (mm)	Inner Dia (ID) D1/D2/D3	Cover Size (D) (mm)	Frame Size (F) (mm)	Frame Height (H) (mm)	Cover Thickness (h) (mm)
Item	Load Capacity (M.Tons)	Clear Opening (O) (mm)	Inner Dia (ID) D1/D2/D3	Cover Size (D) (mm)	Frame Size (F) (mm)	Frame Height (H) (mm)	Cover Thickness (h) (mm)
Square	12.5/25	600X600	200/400/600	662X662	765X765	65	45
	12.5/25	750X750	285/490/700	830X830	945X945	75	40
	12.5/25	900X900	355/560/770	990X990	1095X1095	75	40
