FRP Manhole Covers

FRP Manhole Covers Details

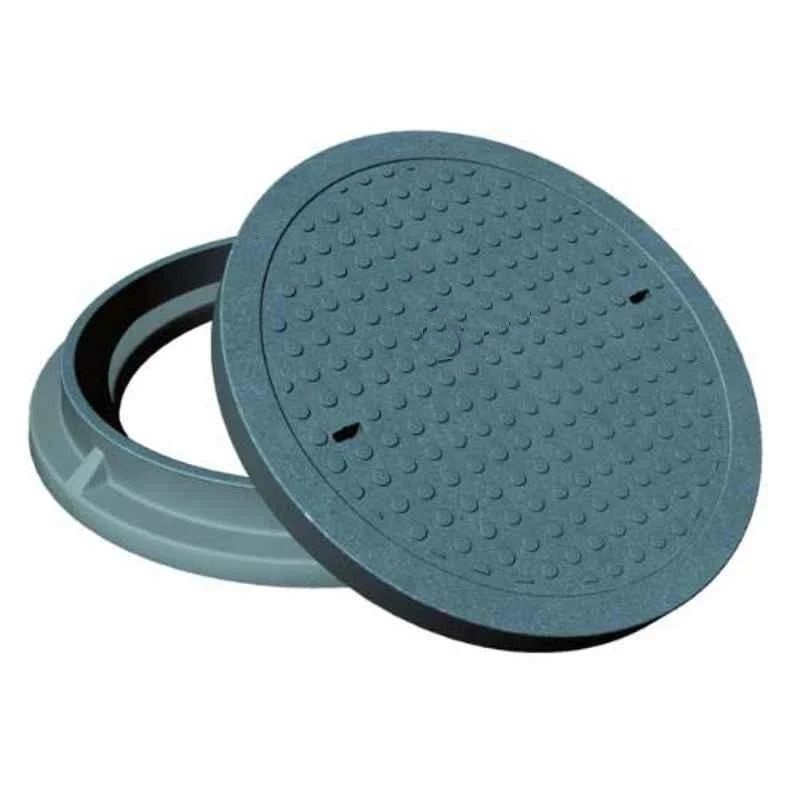

a) Circular Manhole Covers

Circular design is aesthetically very impressive
It provides very good appearance and protect from accidental occurances

b) Rectangular Manhole Covers

Rectangular manhole covers required for some specific areas
Generally bigger size of manhole covers is choosen in rectangular patterns

Book Now

Description

Manhole Cover Specifications

Item	Load Capacity (M.Tons)	Clear Opening (O) (mm)	Cover Size (D) (mm)	Frame Size (F) (mm)	Frame Height (H) (mm)	Cover Thickness (h) (mm)
Rectangular	2.5/5/12.5	300X450	330X480	390X540	35	15
	25/40	300X450	370X520	410X580	60	40
	2.5/5.0/12.5	450X600	520X675	590X740	65	25
	25/40	450X600	520X690	620X770	70	40
	2.5/5.0/12.5	450X900	510X955	580X1025	50	25
	25/40	450X900	520X970	615X1065	85	60
	12.5/25/40	600X750	685X830	800X945	85	40
	12.5/25/40	600X900	670X970	770X1070	90	57
	12.5/25/40	750X900	840X990	965X1120	85	30
Circular	2.5/5.0/12.5	300	360	460	50	25
	25/40	300	375	475	68	35
	2.5/5.0/12.5	450	510	610	50	25
	25/40	450	520	620	75	45
	2.5/5.0/12.5	600	660	730	60	25
	25/40	600	690	780	90	45

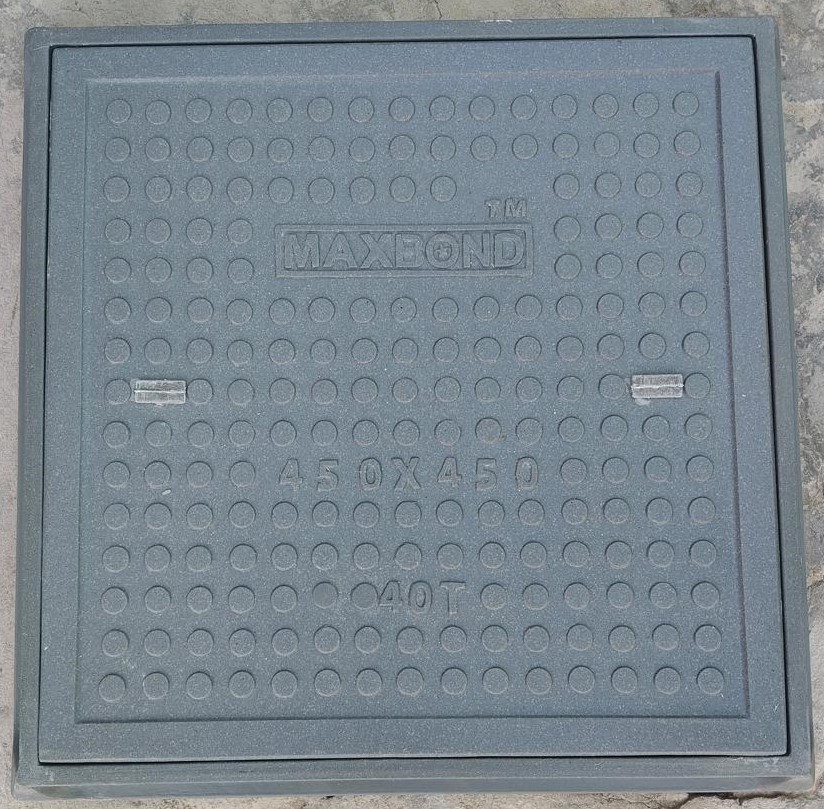

c) Square Manhole Covers

FRP Manhole Covers in square pattern is mostly used because it's impressive design
It is easy to handle due to key holes is provided
It is being used as customer demand for square covers over others are high

Square Manhole Cover Specifications

Item	Load Capacity (M.Tons)	Clear Opening (O) (mm)	Cover Size (D) (mm)	Frame Size (F) (mm)	Frame Height (H) (mm)	Cover Thickness (h) (mm)
Square	2.5/5.0/12.5	200X200	250	310	55	25
	25/40	200X200	260	320	65	35
	2.5/5.0/12.5	300X300	350	420	60	25
	25/40	300X300	380	475	90	45
	2.5/5.0/12.5	450X450	505	575	60	25
	25/40	450X450	530	620	80	35
	2.5/5.0/12.5	600X600	655	720	60	25
	25/40	600X600	690	775	90	45
	12.5	750X750	805	875	70	25
	25/40	750X750	840	925	90	45
	12.5/25/40	900X900	990	1110	70	35
	12.5/25/40	1200X1200	1270X635	1400X1400	80	40
