FRP Recessed Cover Details

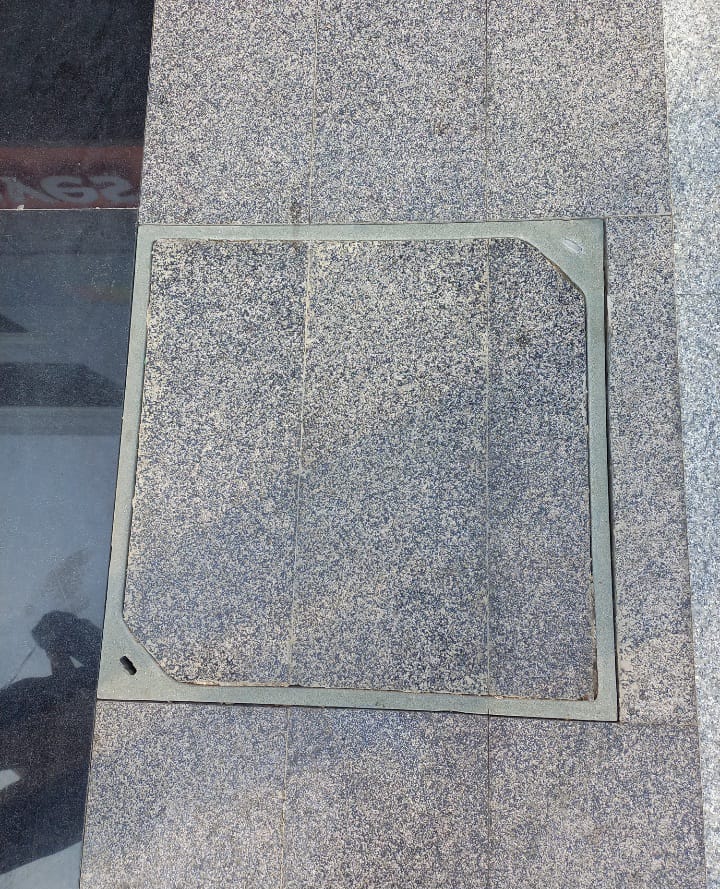

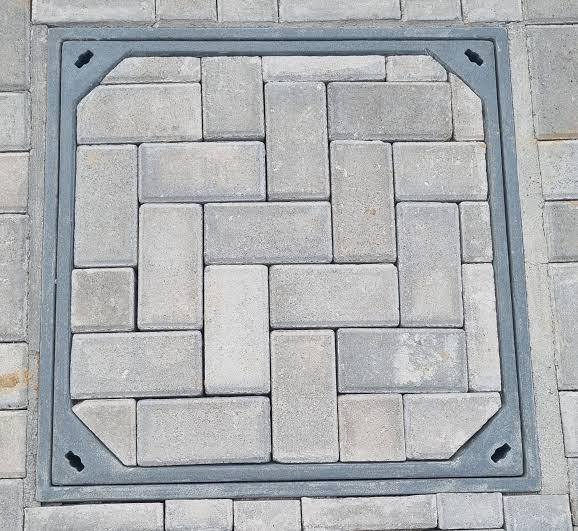

FRP Recessed man hole covers are available in different sizes which have an extra feature to maintain continuity of floor of finish weather the floor covered with tile stone or paver tiles
The Chamber as well as cover will not be visible accept the line of the frame of the recessed cover
It is easy to handle during service & most durable comparative to casted alloy material.

Book Now

Item	Load Capacity (M.Tons)	Clear Opening (O) (mm)	Cover Size (D) (mm)	Frame Size (F) (mm)	Frame Height (H) (mm)	Cover Thickness (h) (mm)	Recessed Height (mm)
Square	2.5/5/12.5	300X300	400	420	100	45	40
	25/40	300X300	420	430	445	125	40
	2.5/5/12.5	450X450	555	570	100	45	40
	25/40	450X450	575	595	125	45	40
	2.5/5/12.5	600X600	705	720	100	45	40
	25/40	600X600	730	750	130	45	40
	12.5/25/40	750X750	830	925	130	80	40
	25/40	900X900	1010	1050	150	85	40
	2.5/5/12.5	300X300	420	445	130	85	80
	25/40	300X300	445	470	150	85	80
	2.5/5/12.5	450X450	580	595	130	85	80
	25/40	450X450	605	620	150	85	80
	2.5/5/12.5	600X600	730	750	130	90	80
	25/40	600X600	755	775	150	90	80
	12.5/25/40	750X750	870	920	150	100	80
	25/40	900X900	1025	1070	150	120	80
