FRP Gully Grating Details

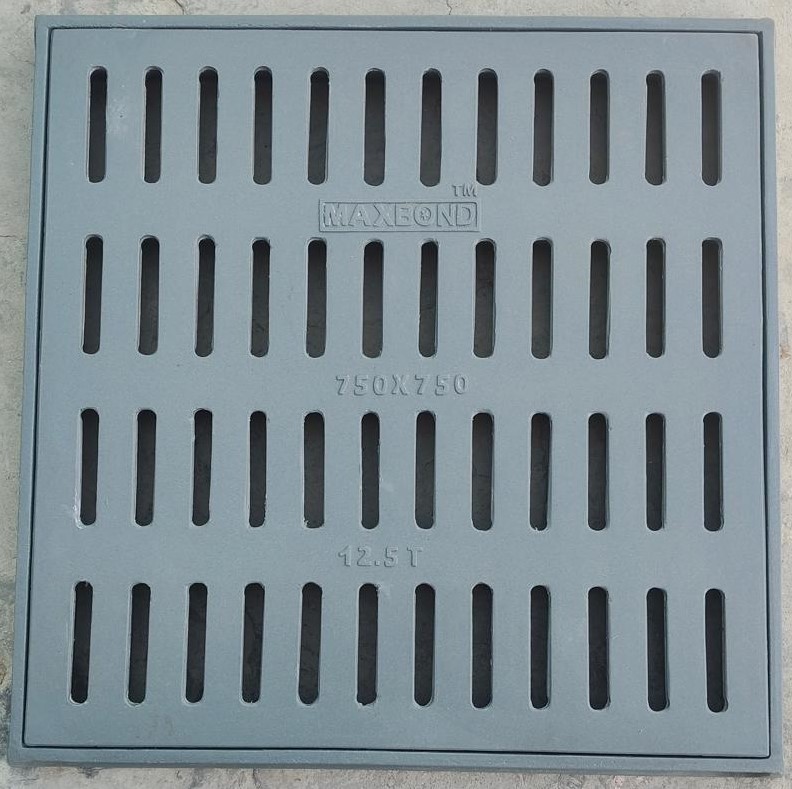

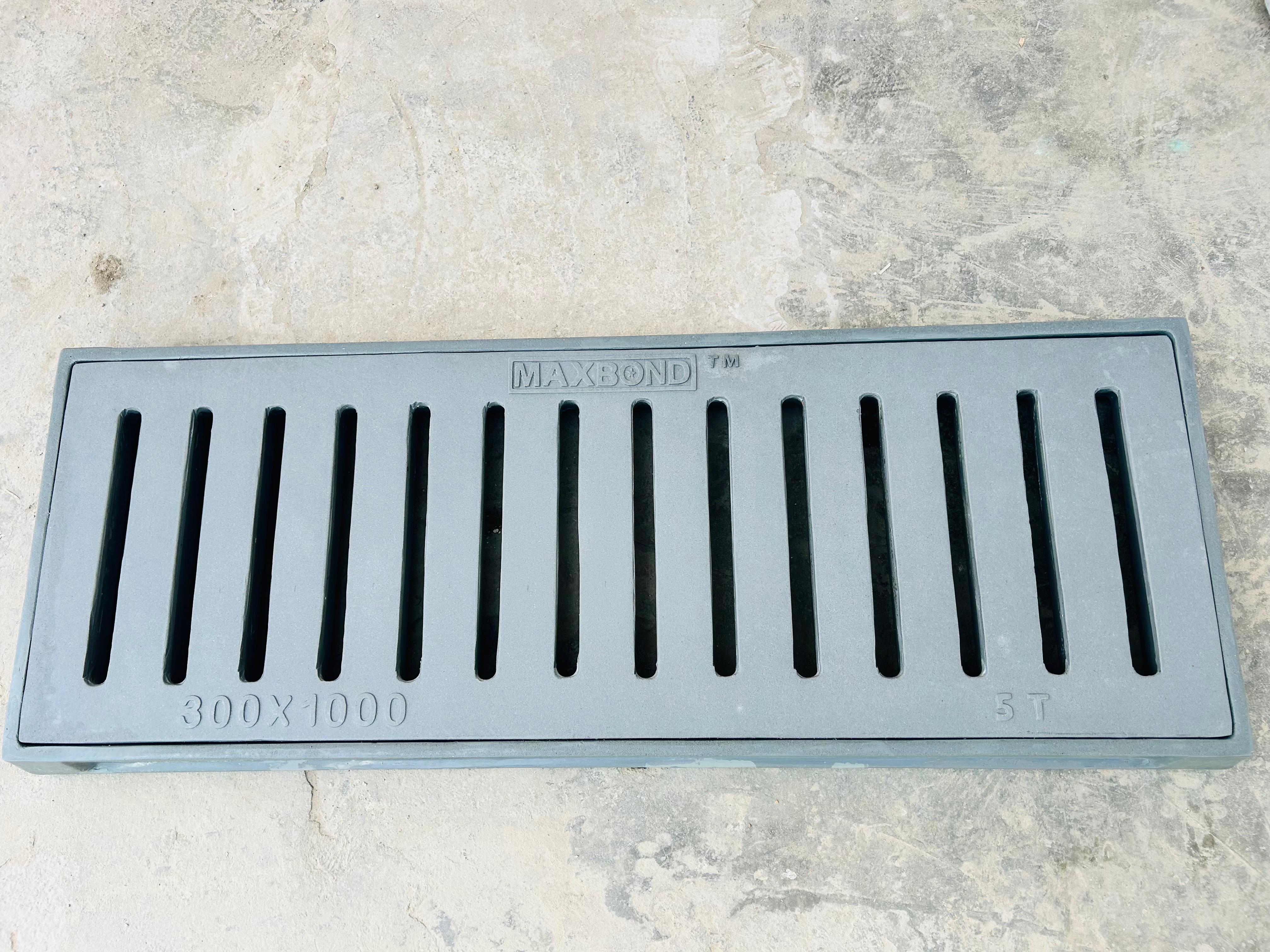

FRP Gully Gratings are available in Square, Circular & Rectangular shapes with very attractive slitting rows
It provides an aesthetic view when it fixed on chamber or drain

Book Now

Item	Load Capacity (M.Tons)	Clear Opening (O) (mm)	Cover Size (D) (mm)	Frame Size (F) (mm)	Frame Height (H) (mm)	Cover Thickness (h) (mm)
Item	Load Capacity (M.Tons)	Clear Opening (O) (mm)	Cover Size (D) (mm)	Frame Size (F) (mm)	Frame Height (H) (mm)	Cover Thickness (h) (mm)
Square	2.5/5.0/12.5	200x200	250	310	65	35
	2.5/5.0/12.5	300x300	360	430	70	30
	25/40	300x300	380	475	90	45
	2.5/5.0/12.5	450x450	505	575	70	30
	25/40	450x450	540	630	90	45
	2.5/5.0/12.5	600x600	685	775	70	30
	25/40	600x600	700	785	90	50
	12.5	750x750	840	910	75	30
	25/40	750x750	850	935	100	50
	12.5	900x900	950	1050	60	30
	25/40	900x900	970	1070	100	50
Rectangular	5.0/12.5	150x1000	205x1055	275x1105	65	30
	25/40	150x1000	230x1080	340x1125	70	35
	5.0/12.5	200x1000	275x1065	335x1100	55	30
	25/40	200x1000	340x1095	420x1155	85	50
	5.0/12.5	250x1000	310x1055	380x1110	65	30
	25/40	250x1000	350x1100	450x1140	70	40
	5.0/12.5	300x1000	365x1065	425x1130	75	40
	25/40	300x1000	395x1190	480x1140	90	45
	12.5 (Cover Only)	395x990	395x990		--	40
	12.5/25/40	450x600	520x675	590x740	65	25
	12.5/25/40	450x900	520x970	605x1010	65	45
	12.5/25/40	600x900	675x975	780x1080	70	40
Circular	2.5/5.0/12.5	600	660	730	60	25
Circular	25/40	600	690	780	90	45
